Monitor Actuation Test

  1. Connect scan tool to Data Link Connector (DLC)
  2. Ignition "ON" & Engine "OFF".
  3. Select the "Actuation Test" mode on the scan tool.
  4. Inspect operating status of inlet valve with Actuation Test.

    Specification: It's normal if operating sound is heard.

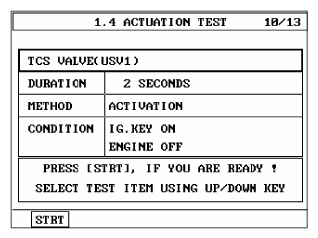

    Fig 1: Scan Tool Display - TCS Valve
    G06412766Courtesy of KIA MOTORS AMERICA, INC.
  5. Does a inlet valve operate normally?

    YES

    • Fault is intermittent caused by inoperative valve or was repaired and HECU memory was not cleared. Go to the applicable troubleshooting procedure.

    NO

    • Go to "W/Harness Inspection" procedure.
