Signal Circuit Inspection

  1. Ignition "ON" & Engine "OFF".
  2. Measure voltage between terminal "21" of the HECU harness connector and chassis ground.

    Specification: Approx. 2.5 V

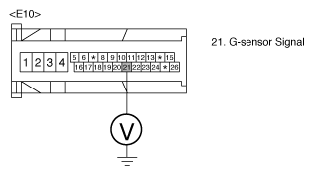

    Fig 1: Measuring Voltage Between Terminal "21" Of HECU Harness Connector And Chassis Ground
    G06412694Courtesy of KIA MOTORS AMERICA, INC.
  3. Is the measured voltage within specifications?

    YES

    • Fault is intermittent caused by open or short G-sensor and/or faulty G-sensor or was repaired and HECU memory was not cleared. Go to "COMPONENT INSPECTION " procedure.

    NO

    • Check for open or short in the G-sensor harness between terminal "2" of the G-sensor harness connector and terminal "21" of the HECU harness connector. Repair as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
