Removal And Installation

Remove Tailgate upper trim.
1. Disconnect rear window defroster connector.
2. Remove upper trim fastener.

  Fig 1: Locating Upper Trim Fastener
  Courtesy of KIA MOTORS AMERICA, INC.
Remove high-mounted brake light.
1. Disconnect electrical connector.
2. Remove high-mounted brake light screw (2).

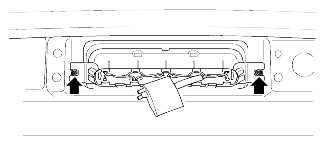

  Fig 2: Locating High-Mounted Brake Light Screws
  Courtesy of KIA MOTORS AMERICA, INC.
Remove tailgate trim.
1. Remove tailgate fasteners (6) and screws (1).

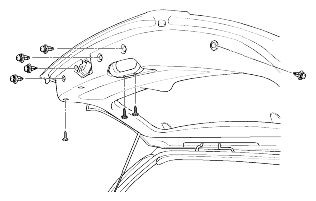

  Fig 3: Identifying Tailgate Fasteners And Screws
  Courtesy of KIA MOTORS AMERICA, INC.
2. Remove inner assist handle screws (2).
Remove tailgate screen.
Remove tailgate glass lifter.
1. After pulling out lifter clip with (-) screwdriver, extract lifter.

  Fig 4: Locating Inner Assist Handle Screws
  Courtesy of KIA MOTORS AMERICA, INC.
Remove tailgate glass.
1. Remove tailgate glass hinge bolt (1).
  Tightening torque:

  7-9 N.m (0.7-0.9 kg.m, 5-7 lb.ft)

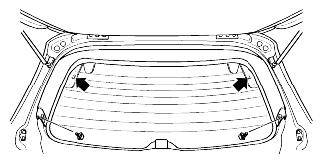

  Fig 5: Identifying Tailgate Glass Hinge Bolt
  Courtesy of KIA MOTORS AMERICA, INC.
Remove tailgate glass latch assembly.
1. Remove tailgate glass latch bolt (2).
  Tightening torque:

  7-11 N.m (0.7-1.1 kg.m, 5-8 lb.ft)

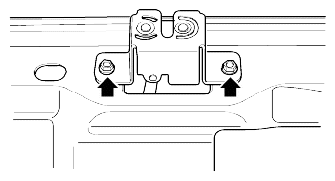

  Fig 6: Locating Tailgate Glass Latch Bolts
  Courtesy of KIA MOTORS AMERICA, INC.
Install in reverse order of removal.
