Repair Procedures: Removal

  1. Unscrew two mounting screws from sunvisors.
  2. Remove sunvisors and sunvisors retainers.
    Fig 1: Identifying Sunvisors And Sunvisors Retainers
    G06410557Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove assist handle covers, unscrew mounting screws.
  4. Remove three assist handles.
    Fig 2: Identifying Assist Handles
    G06410558Courtesy of KIA MOTORS AMERICA, INC.
  5. Gently remove lens assembly on interior and map light.
    Fig 3: Identifying Lens Assembly And Map Light
    G06410559Courtesy of KIA MOTORS AMERICA, INC.
  6. Remove light bulb.
  7. Remove two mounting screws.
  8. Disconnect power connector and remove interior and map light.
  9. Remove front, center, C and D-pillar trims.
  10. Remove seven fasteners.
  11. Remove headliner

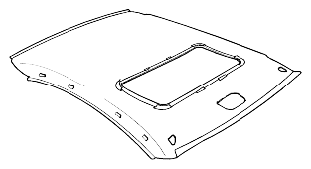

    Fig 4: Identifying Headliner
    G06410560Courtesy of KIA MOTORS AMERICA, INC.
  12. Install in reverse order of removal.
