Glove Box Replacement

Disconnect the damper (B) from the glove box (A).

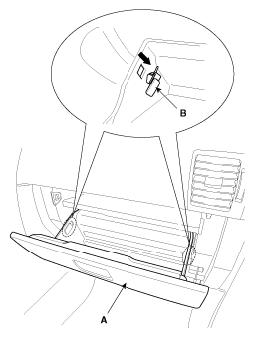

Fig 1: Identifying Damper And Glove Box
Courtesy of KIA MOTORS AMERICA, INC.
Remove the glove box (A) from the lift (B).

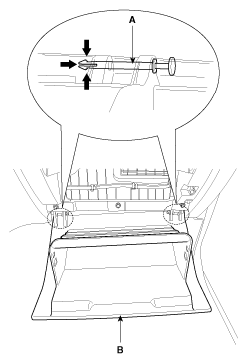

Fig 2: Identifying Glove Box And Lift
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the pin (A), then remove the glove box (C).

Fig 3: Identifying Glove Box And Pin
Courtesy of KIA MOTORS AMERICA, INC.
Remove the glove box housing (A).

Fig 4: Identifying Glove Box Housing With Screws, Bolts And Clips
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse of removal.
