Repair Procedures: Inspection

With the power seat switch in each position, make sure that continuity exists between the terminals below. If continuity is not as specified, replace the power seat switch.

Fig 1: Identifying Power Seat Control Switch Connector

Courtesy of KIA MOTORS AMERICA, INC.

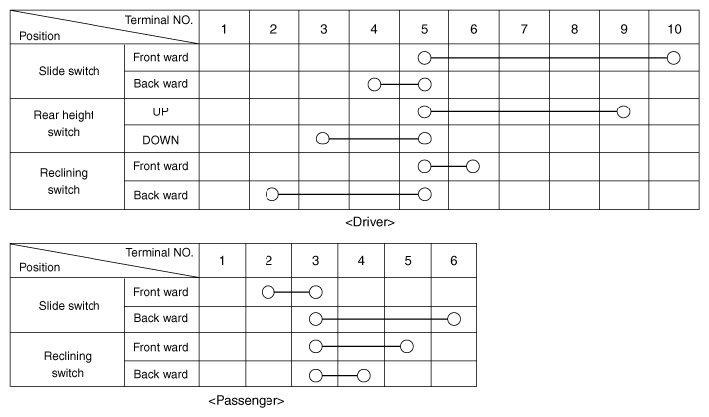

Fig 2: Connector Terminal Position Chart (1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.
