Chart 4

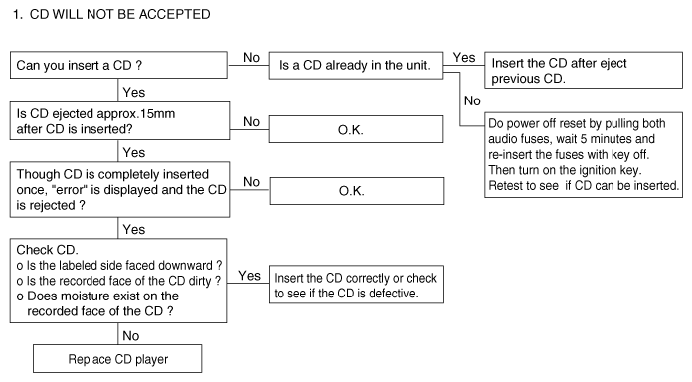

Fig 1: CD Player And Speaker Troubleshooting Flow Chart 4 (1 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.

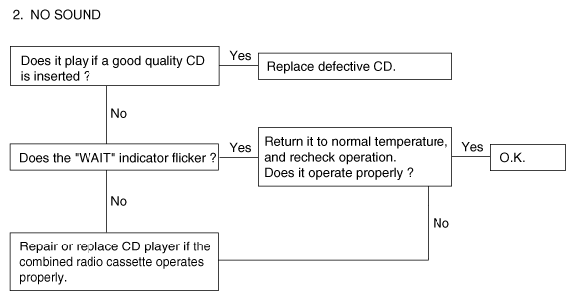

Fig 2: CD Player And Speaker Troubleshooting Flow Chart 4 (2 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.

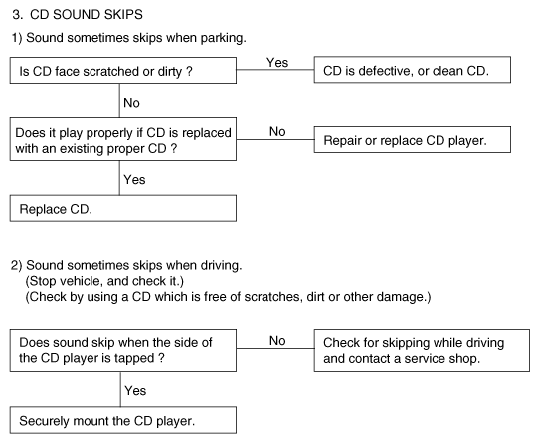

Fig 3: CD Player And Speaker Troubleshooting Flow Chart 4 (3 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.

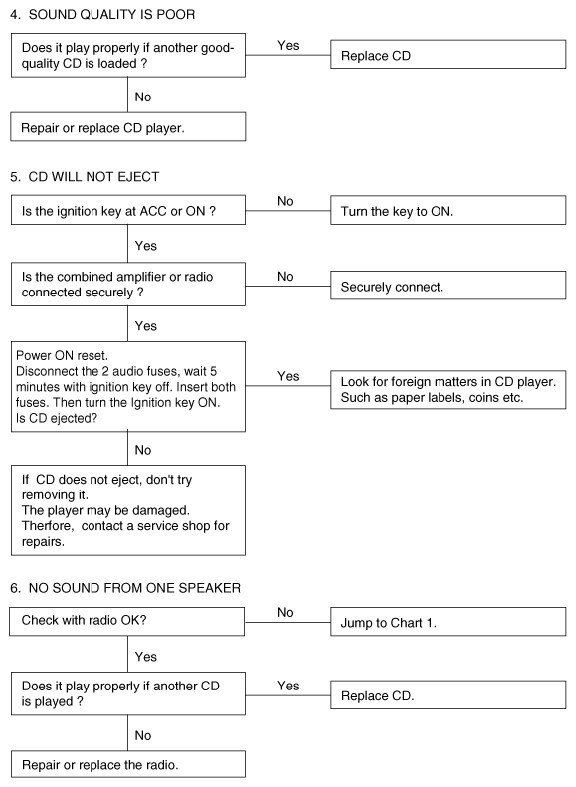

Fig 4: CD Player And Speaker Troubleshooting Flow Chart 4 (4 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.
