Kia
>>
2009
>>
Sorento Base, A5SR2
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Entertainment Systems
>>
Audio
>>
Troubleshooting
>>
Chart 1
Chart 1

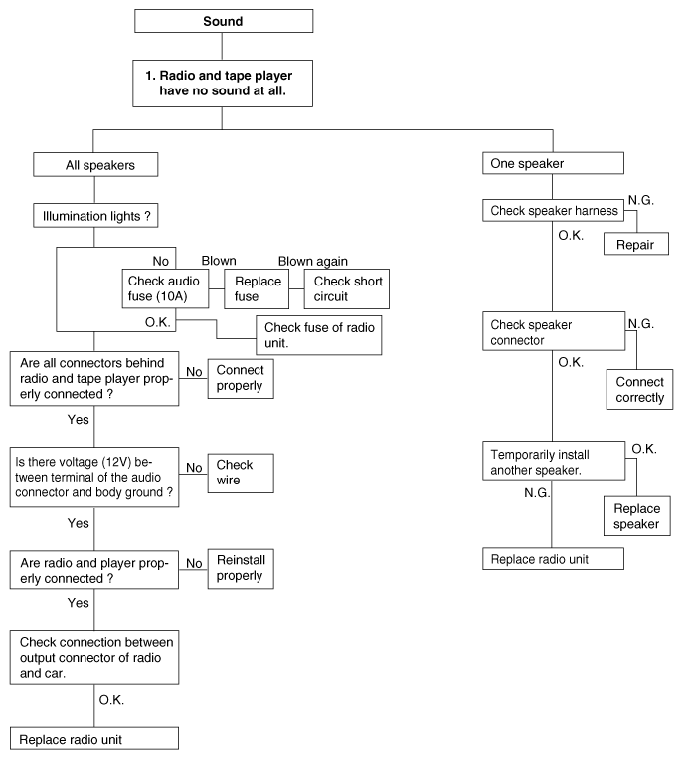

Fig 1: CD Player And Speaker Troubleshooting Flow Chart 1 (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

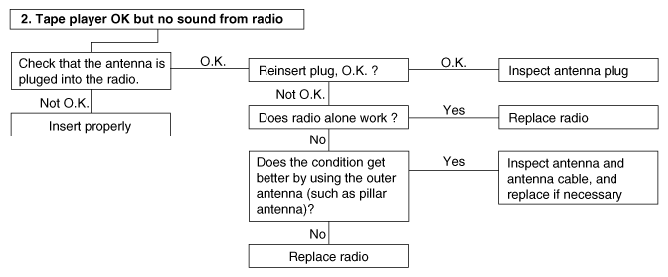

Fig 2: CD Player And Speaker Troubleshooting Flow Chart 1 (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
