Home >> Kia >> 2009 >> Sedona Base >> Repair and Diagnosis >> Brakes >> Traction Control >> Abs (Anti-Lock Brake System) >> Standard Flow Of Diagnostic Troubleshooting >> Notes

Standard Flow Of Diagnostic Troubleshooting: Notes

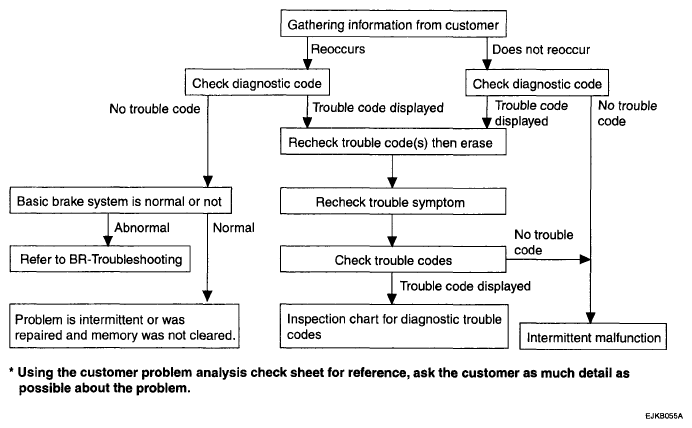

Fig 1: Standard Flow Of Diagnostic Troubleshooting Chart

G04883839

Courtesy of KIA MOTORS AMERICA, INC.
