Power Supply Circuit Inspection

Check open in power circuit
1. Ignition "ON" & engine "OFF"
2. Measure the resistance between stop lamp power circuit connector terminal at RAM side (BEC-RF1-33,43, BEC-RR-14) and stop lamp (F18,F19-2,R03-1).
  Specification: 0 Ω

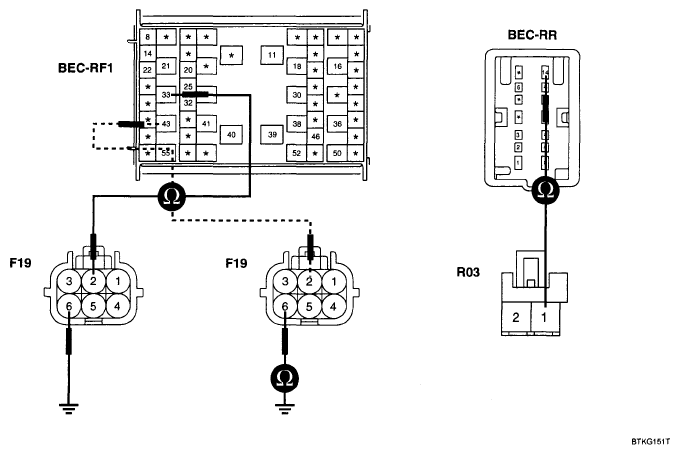

  Fig 1: Measuring Resistance Between Stop Lamp Power Circuit Connector Terminals
  Courtesy of KIA MOTORS AMERICA, INC.
3. Is the measured resistance within the specification?
  YES

  Go to "GROUND CIRCUIT INSPECTION ".

  NO

  Repair open in power circuit and Go to "VERIFICATION OF VEHICLE REPAIR ".
