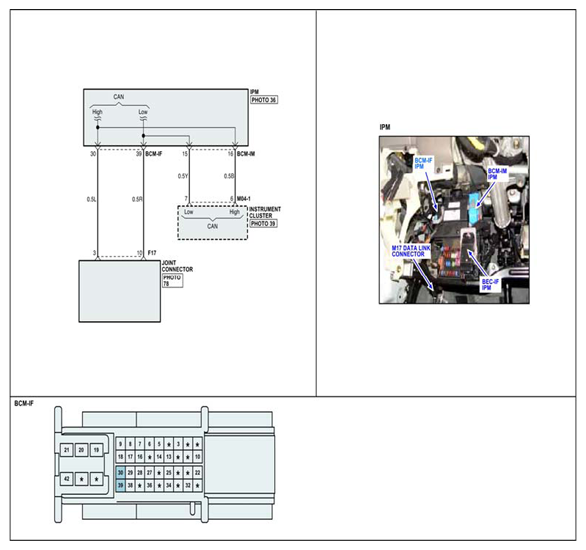

Home >> Kia >> 2009 >> Sedona Base >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Communication Devices >> BCM (Body Control Module) >> Body Network System >> DTC Codes >> DTC B1602: Can Bus Physical Error, Bus Failure >> Schematic Diagram
