Spark Test

Remove the ignition coil connector (A).

Fig 1: Identifying Ignition Coil Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the ignition coil (A).

Fig 2: Identifying Ignition Coil
Courtesy of KIA MOTORS AMERICA, INC.
Using a spark plug socket, remove the spark plug.
Install the spark plug to the ignition coil.
Ground the spark plug to the engine.

Fig 3: Removing Spark Plug Using Spark Plug Socket
Courtesy of KIA MOTORS AMERICA, INC.
Check if spark occurs while engine is being cranked.
NOTE: To prevent fuel being injected from injectors while the engine is being cranked, remove the fuel pump relay (A) from the fuse box.
Crank the engine for no more than 5 ~ 10 seconds.

Fig 4: Identifying Fuel Pump Relay
Courtesy of KIA MOTORS AMERICA, INC.
Inspect all the spark plugs.
Using a spark plug socket, install the spark plug.
Install the ignition coil.
Reconnect the ignition coil connector.

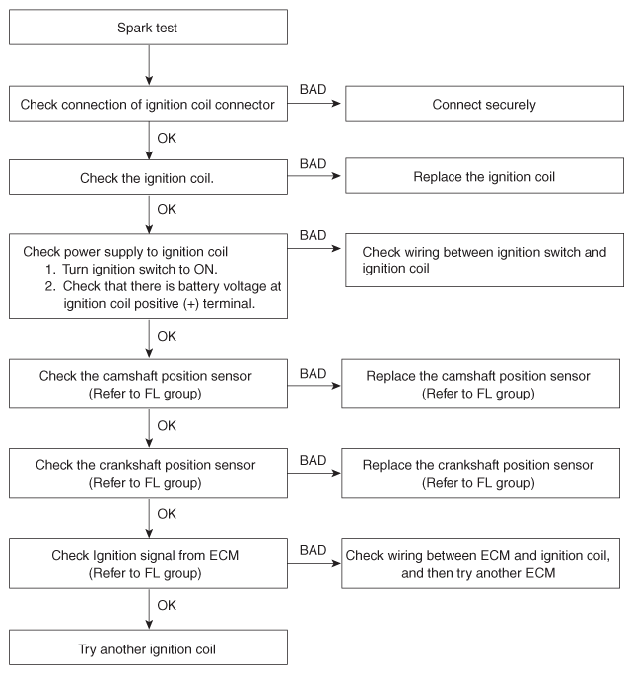

Fig 5: Ignition Troubleshooting Flow Chart
Courtesy of KIA MOTORS AMERICA, INC.
