Components (2)

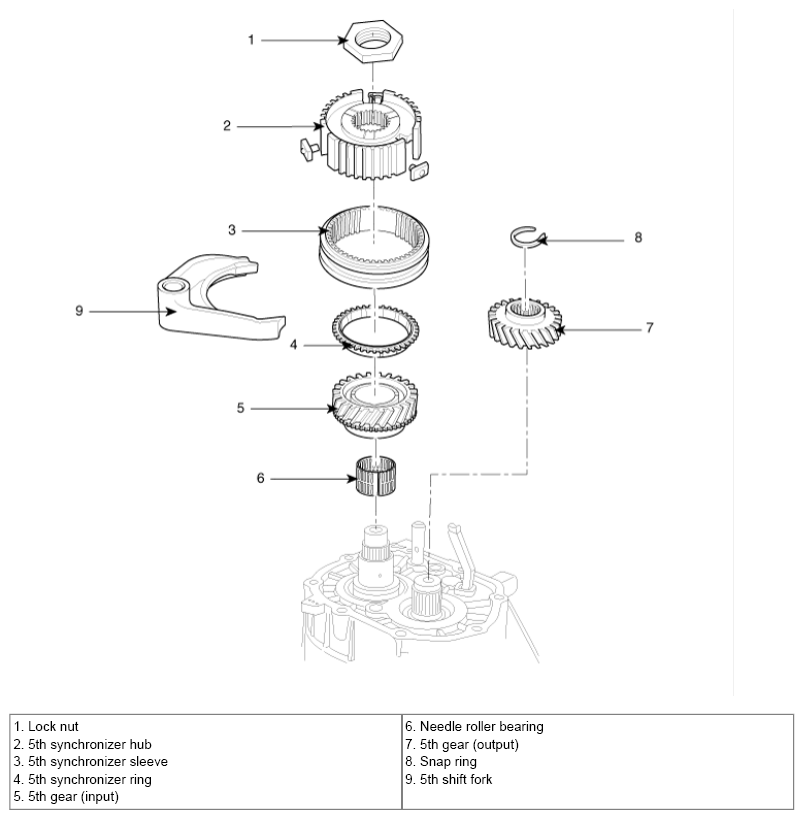

Fig 1: Exploded View Of Manual Transaxle (2 Of 2)

G06405629

Courtesy of KIA MOTORS AMERICA, INC.
