Audio System: Antenna: Replacement

  1. Remove the rear roof trim. Refer to INTERIOR TRIM .
  2. Disconnect the 1P connector (A) and antenna jack (B) from the roof antenna.
  3. Remove the roof antenna after removing a nut.

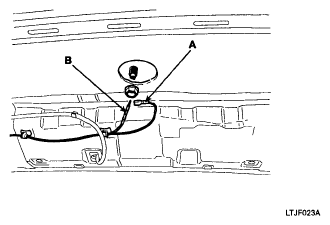

    Fig 1: Identifying 1P Connector And Antenna Jack
    G04863490Courtesy of KIA MOTORS AMERICA, INC.
  4. Installation is the reverse of removal.
