Circuit Diagram: BCM

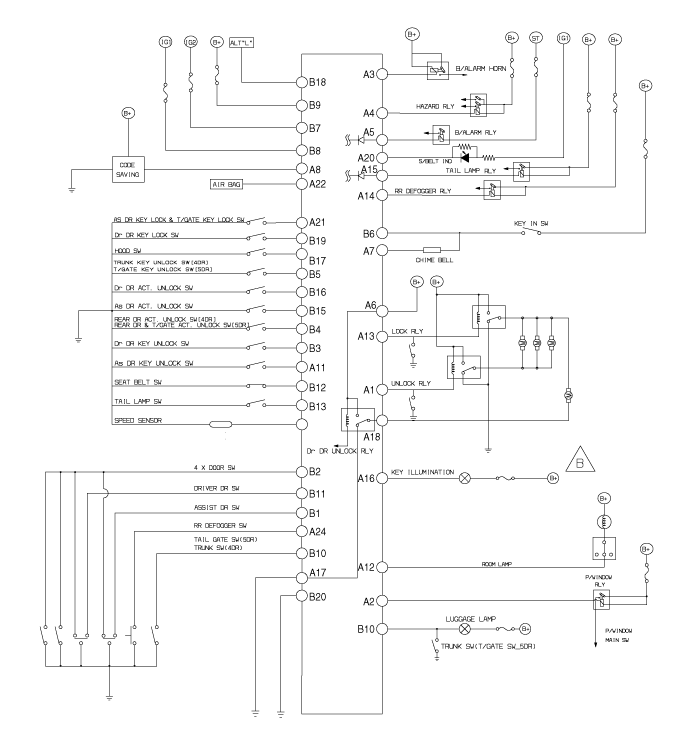

Fig 1: BCM Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Fig 1: BCM Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
