1ST Gear ( "L" Range)

Operating elements: Rear Clutch, Low & Reverse Brake

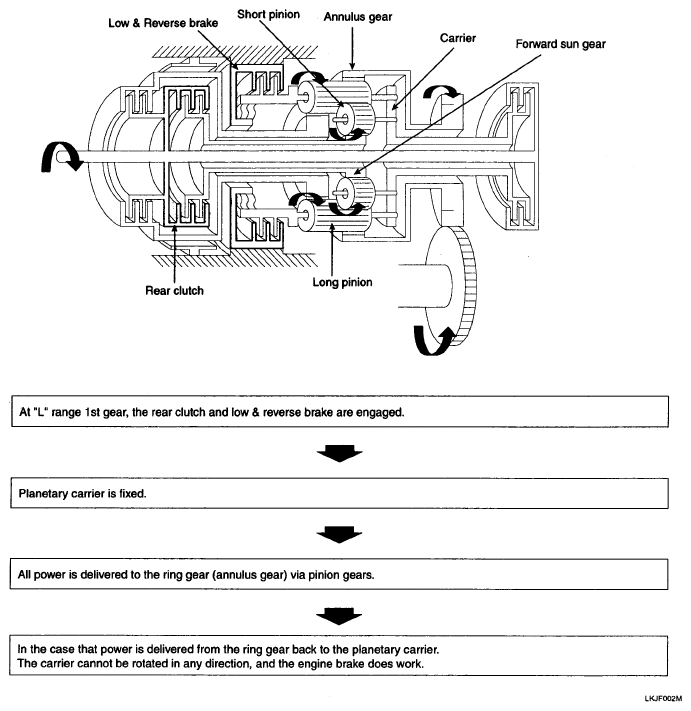

Fig 1: 1st Gear - "D", "L" & "2" Range - Rear Clutch, Low & Reverse Brake Operation

G04862499

Courtesy of KIA MOTORS AMERICA, INC.
