Front Driveshaft: Disassembly

NOTE:
  • Do not disassemble the BJ assembly.
  • Special grease must be applied to the driveshaft joint. Do not substitute with another type of grease.
  • The boot band should be replaced with a new one.

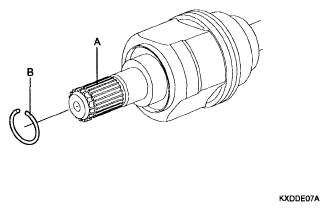

  1. Remove the clip (B) from driveshaft splines (A) of the transaxle side.
    Fig 1: Identifying Clip And Driveshaft Splines Of Transaxle Side
    G04805273Courtesy of KIA MOTORS AMERICA, INC.

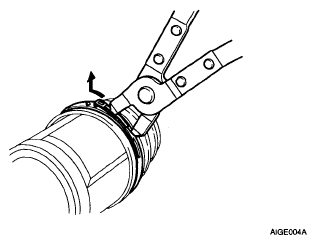

  2. Remove both boot bands from the transaxle side UTJ case.
    Fig 2: Removing Both Boot Bands And Transaxle Side UTJ Case
    G04805274Courtesy of KIA MOTORS AMERICA, INC.
  3. Pull out the boot from the transaxle side joint (UTJ).

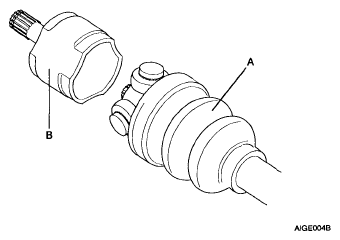

  4. When separating the joint and boot (A), remove the grease from the UTJ case (B).
    Fig 3: Identifying Joint And Boot Grease From UTJ Case
    G04805275Courtesy of KIA MOTORS AMERICA, INC.
    CAUTION:
    • Be careful not to damage the boot.

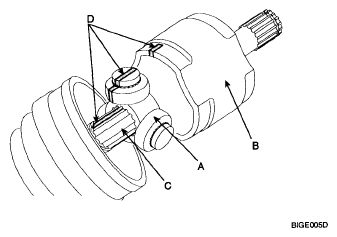

    • Make alignment marks on spider roller assembly (A), UTJ case (B), and shaft splines (C) to aid reassembly.
    Fig 4: Identifying Roller Assembly, UTJ Case And Shaft Splines
    G04805276Courtesy of KIA MOTORS AMERICA, INC.

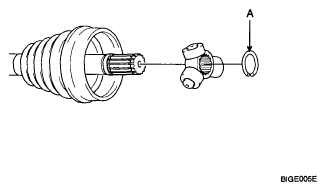

  5. Using a plier or flat-tipped screwdriver, remove the snap ring (A).
    Fig 5: Identifying Snap Ring
    G04805277Courtesy of KIA MOTORS AMERICA, INC.

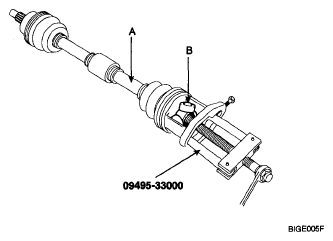

  6. Remove the spider assembly (B) from driveshaft (A) by using the Special Tool (09495-33000).
    Fig 6: Identifying Spider Assembly And Driveshaft
    G04805278Courtesy of KIA MOTORS AMERICA, INC.
  7. Clean the spider assembly.

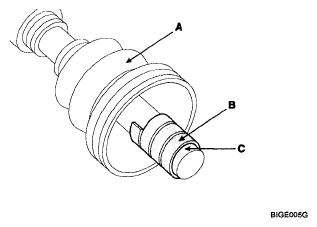

  8. Remove the boot (A), of the transaxle side joint (UTJ).
    CAUTION: Wrap tape (B) around the driveshaft splines (C) to protect the boot (A).
    Fig 7: Identifying Boot And Transaxle Side Joint
    G04862734Courtesy of KIA MOTORS AMERICA, INC.

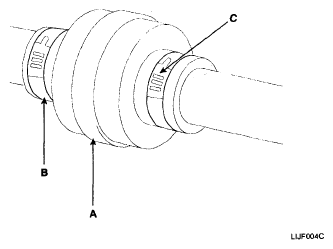

  9. Remove both side of bands (B, C) of the dynamic damper (A).
    Fig 8: Identifying Both Bands
    G04862735Courtesy of KIA MOTORS AMERICA, INC.

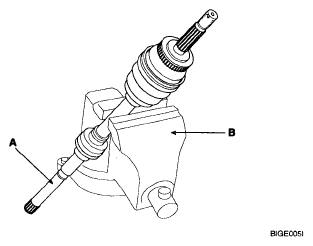

  10. Fix the driveshaft (A) with a vice (B). See Fig 9.
    Fig 9: Mounting Driveshaft On Vice
    G04805281Courtesy of KIA MOTORS AMERICA, INC.
  11. Apply soap powder on the shaft to prevent being damaged between the shaft spline and the dynamic damper when the dynamic damper is removed.

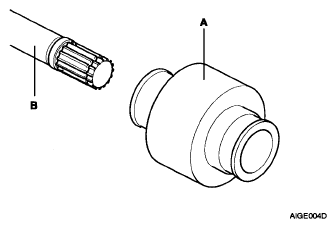

  12. Separate dynamic damper (A) from the shaft (B) carefully.
    Fig 10: Identifying Dynamic Damper And Shaft
    G04805282Courtesy of KIA MOTORS AMERICA, INC.

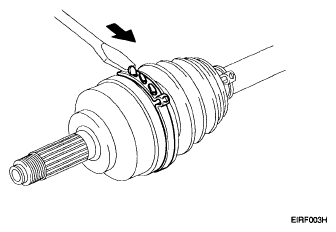

  13. Remove both bands on the side of wheel.
    Fig 11: Removing Both Bands On Side Wheel
    G04805283Courtesy of KIA MOTORS AMERICA, INC.
  14. Pull out the joint (BJ) boot on the side of wheel into the transaxle direction.
    CAUTION: Be careful not to damage the boot.
