Door Locks
>>
Immobilizer System
>>
P1695: Ems Memory Error
>>
Diagnostic Circuit Diagram
Diagnostic Circuit Diagram

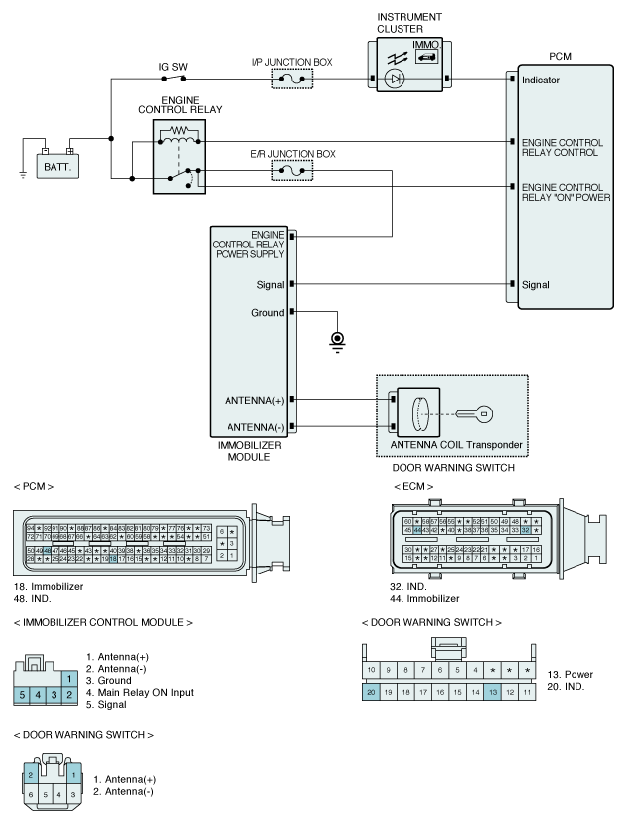

Fig 1: Instrument Cluster - Circuit Diagram
