Troubleshooting
>>
Chart 1
Chart 1

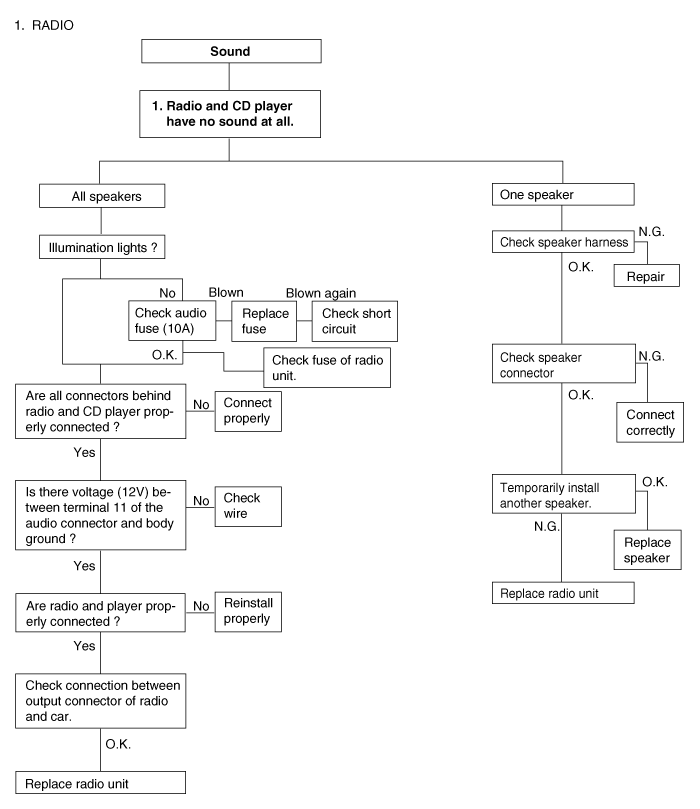

Fig 1: Troubleshooting Flow Chart - Sound
Courtesy of KIA MOTORS AMERICA, INC.
Fig 2: Troubleshooting Flow Chart - CD Player OK But No Sound From Radio
Courtesy of KIA MOTORS AMERICA, INC.
Fig 3: Troubleshooting Flow Chart - Sirius (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

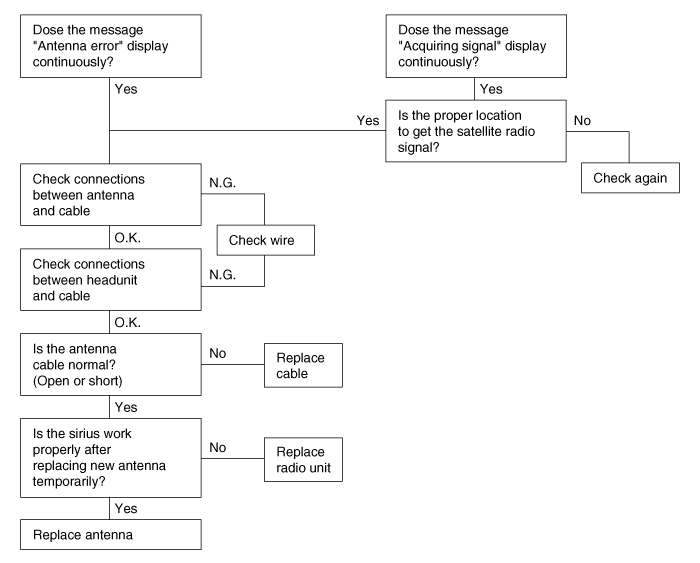

Fig 4: Troubleshooting Flow Chart - Sirius (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
