Monitor Scan Tool Data

  1. Check status
    1. IGN "ON" & Engine "OFF"
    2. Monitor the "ECM, KEY and SMARTRA Status" Parameter on the Scan Tool.

      Specification: 'LEARNT'

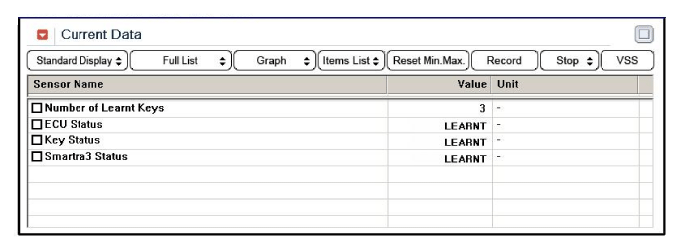

      Fig 1: Data Keys Have Been Taught, ECU Has Been Learnt, Key In Key Cylinder Has Been Learnt And Smartra3 Has Been Learnt
      G06405868Courtesy of KIA MOTORS AMERICA, INC.
    3. Has the KEY status been learnt?

      YES

      • Check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, damage on the ECM or SMARTRA. And This DTC has not been erased in previous repair. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

      NO
