Pressure Control Solenoid Valve (PCSV): Description: Notes

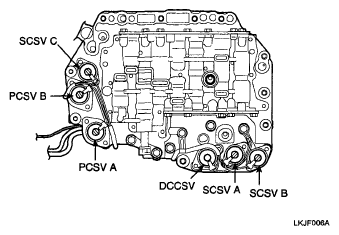

Fig 1: Identifying Pressure Control Solenoid Valves
Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
SCSV-A/B/C (ON/OFF)
PCSV-A/B (Duty)
DCCSV (ON/OFF)
Courtesy of KIA MOTORS AMERICA, INC.
