Pressure Control Solenoid Valve (PCSV): Description: Characteristics

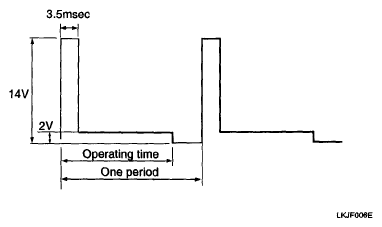

OUTPUT WAVEFORM GRAPH

Pin voltage Output waveform
Solenoid valve resistance Above 2.6Ω
G04862658Courtesy of KIA MOTORS AMERICA, INC.
Surge voltage 56V
IG "ON" 12-14V (TCM Pin)
