Component Inspection

Check "OUTPUT SPEED SENSOR (PG-B)"
1. Ignition "OFF".
2. Disconnect the "OUTPUT SPEED SENSOR" connector.
3. Measure resistance between terminal "1" and "2" of the "OUTPUT SPEED SENSOR" connector.
  Specification: 245±30 Ω /20°C (68°F)

  Fig 1: Measuring Resistance Between Terminal 1 And 2 Of Output Speed Sensor Connector
  Courtesy of KIA MOTORS AMERICA, INC.
4. Is resistance within specifications?
  YES : --> Go to step 2.

  NO : --> Replace "OUTPUT SPEED SENSOR (PG-B)" as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
CHECK PCM
1. Ignition "ON" & Engine "OFF".
2. Connect "OUTPUT SPEED SENSOR" connector.
3. Install scan tool and select SIMU-SCAN mode.
4. Simulate frequency to "OUTPUT SPEED SENSOR (PG-B)" signal circuit.

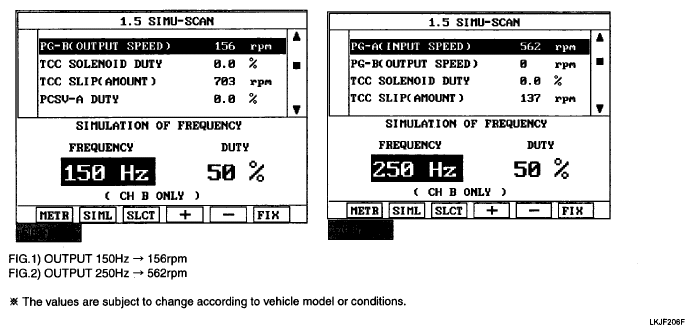

  Fig 2: Output Speed Sensor (PG-B) - Screen Display
  Courtesy of KIA MOTORS AMERICA, INC.
5. Is "OUTPUT SPEED SENSOR (PG-B)" signal value changed according to simulation frequency?
  YES : --> Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

  NO : --> Substitute with a known-good PCM and check for proper operation. If the problem is corrected, replace PCM as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
