Signal Circuit Inspection

  1. Ignition "OFF".
  2. Disconnect "TRANSAXLE RANGE SWITCH" and "PCM" connector.
  3. Measure resistance between each terminal of the sensor harness connector and PCM harness connector.

    Specification: See TRANSAXLE RANGE SWITCH SPECIFICATIONS CHART .

    TRANSAXLE RANGE SWITCH SPECIFICATIONS CHART

    RANGE L 2 P R D N
    Pin No of "TRANSAXLE RANGE SWITCH C11 No. 2 C11 No. 4 C11 No. 9 C11 No. 10 C11 No. 11 C11 No. 12
    Pin No of "PCM" harness C01-1 No. 68 C01-1 No. 89 C01-1 No. 67 C01-1 No. 88 C01-1 No. 66 C01-1 No. 91
    Specification 0Ω 0Ω 0Ω 0Ω 0Ω 0Ω

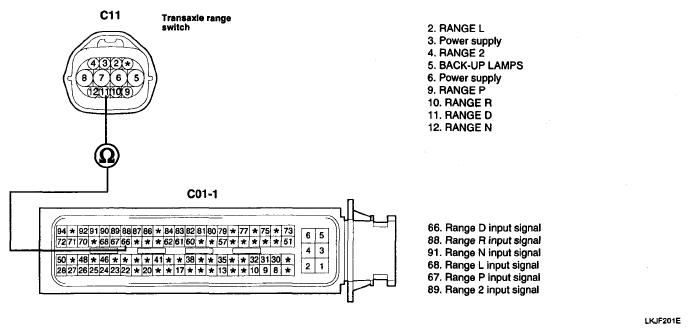

    Fig 1: Measuring Resistance Between Terminal Of Sensor Harness Connector
    G04862539Courtesy of KIA MOTORS AMERICA, INC.
  4. Is resistance within specifications?

    YES  : --> Go to "COMPONENT INSPECTION " procedure.

    NO  : --> Check for open in harness. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
