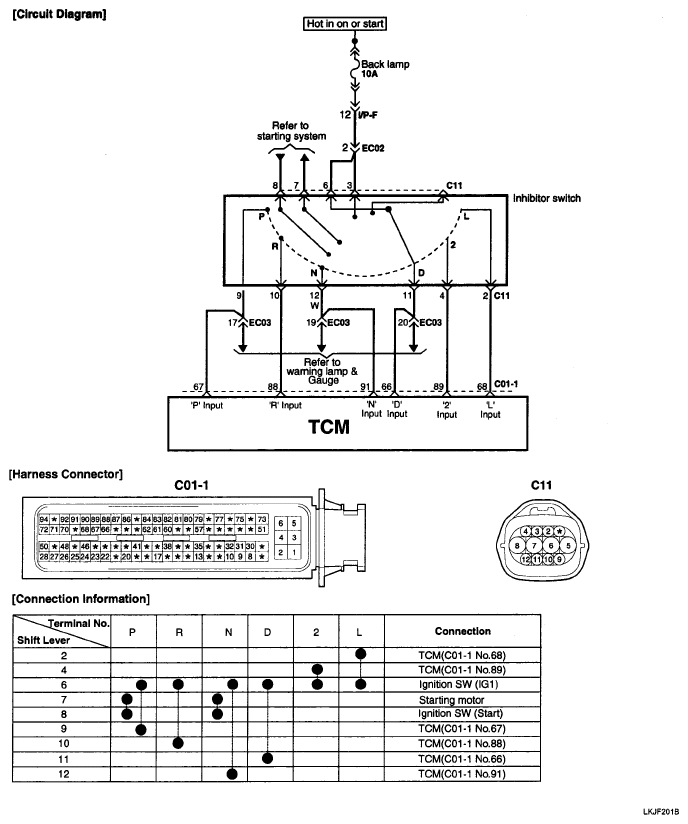

Home >> Kia >> 2009 >> Rio Base, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle System >> Troubleshooting >> DTC P0707 Transaxle Range Switch-No Input >> Schematic Diagram
