Front Lower Arm: Components

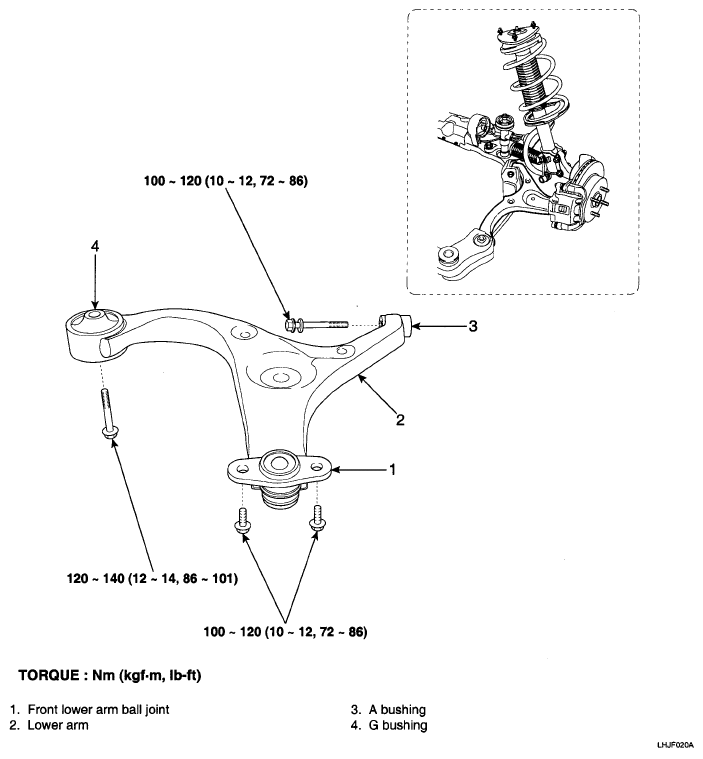

Fig 1: Front Lower Arm Replacement Components With Torque Specifications

G04862813

Courtesy of KIA MOTORS AMERICA, INC.
