Master Cylinder: Components

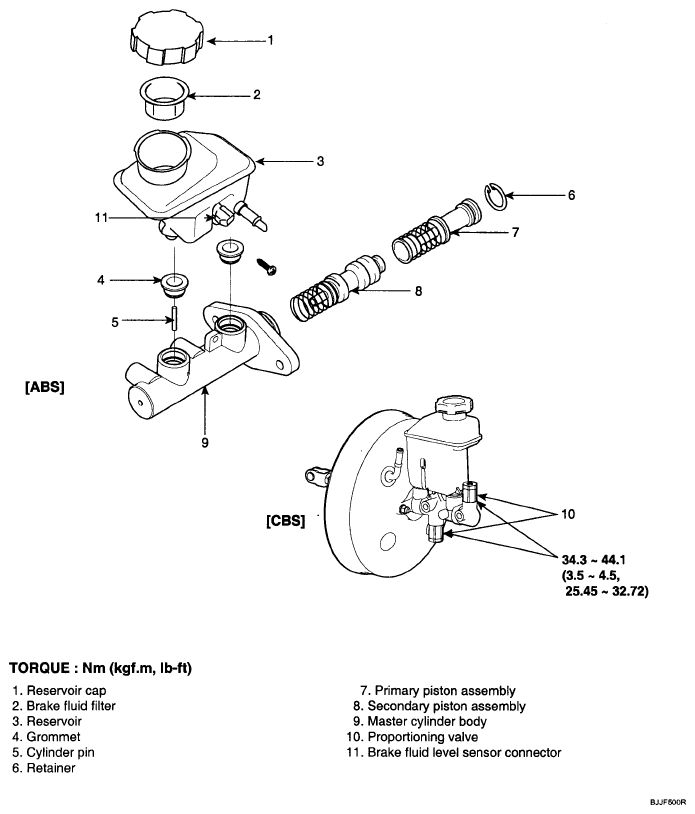

Fig 1: Master Cylinder Replacement Components With Torque Specifications
G04863190Courtesy of KIA MOTORS AMERICA, INC.
