Front Disc Brake: Components

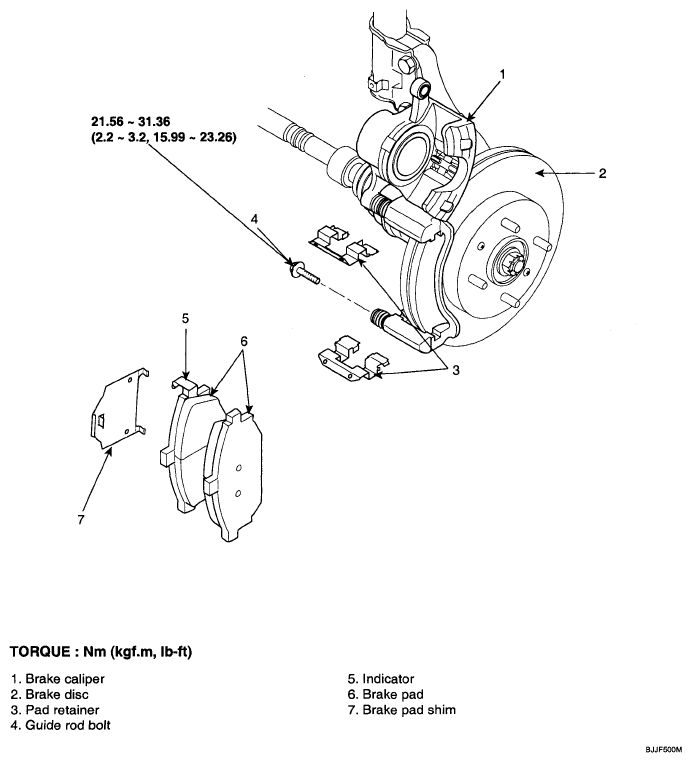

Fig 1: Front Disc Brake Replacement Components With Torque Specifications (1 Of 2)
G04863179Courtesy of KIA MOTORS AMERICA, INC.

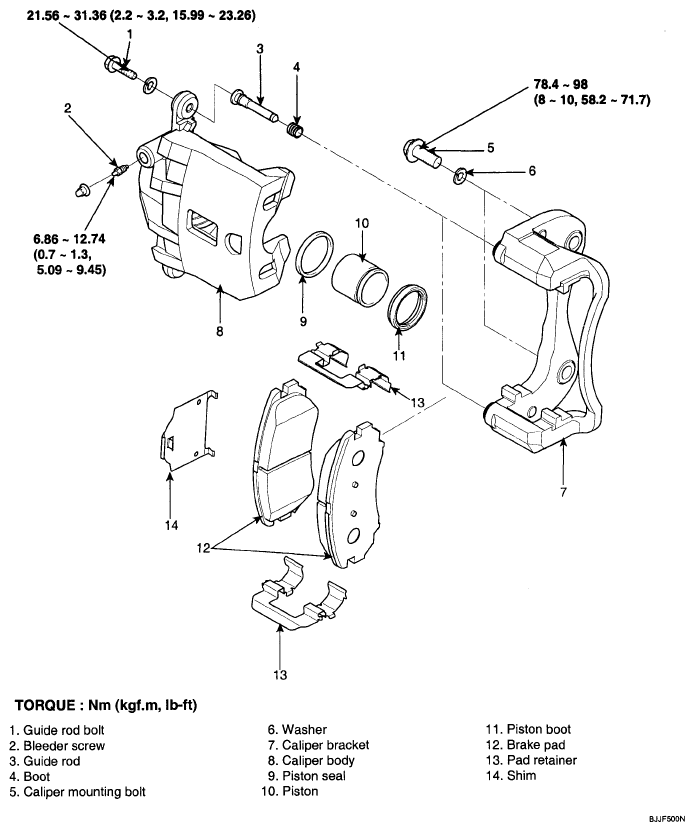

Fig 2: Front Disc Brake Replacement Components With Torque Specifications (2 Of 2)
G04863180Courtesy of KIA MOTORS AMERICA, INC.
