Front Disc Brake

Install a brake hose (A) on the caliper with tightening brake hose bolt (C) and washer (B).

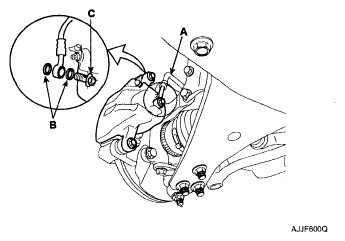

Fig 1: Identifying Brake Hose, Brake Hose Bolt And Washers
Courtesy of KIA MOTORS AMERICA, INC.
Install the brake hose clip (C) to the brake hose bracket (B), then install the brake hose (A).

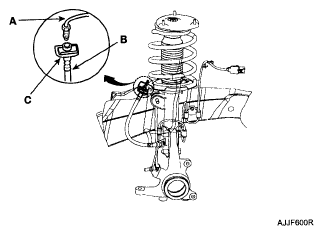

Fig 2: Identifying Brake Hose, Brake Hose Bracket And Brake Hose Clip
Courtesy of KIA MOTORS AMERICA, INC.
Connect the brake hose to the brake line.
After installing the brake hose, bleed the brake system.
CAUTION:
- Check the brake hoses for interference and twisting.
- Check the brake hose and line joint for leaks, and tighten if necessary.
