Air Vent Replacement

NOTE:
  • When prying with a flat-up screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
  • Put on gloves to protect your hands.
  1. Remove the crash pad side cover. See COVER REPLACEMENT .
  2. Using a screw driver remove the air vent (A).

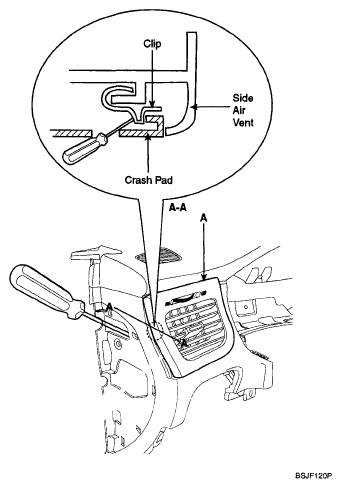

    Fig 1: Identifying Air Vent
    G04863409Courtesy of KIA MOTORS AMERICA, INC.
  3. Installation is the reverse of removal.
