Seat Track Replacement

  1. Remove the seat back panel. See SEAT BACK COVER REPLACEMENT .
  2. Remove the recliner cover, knob and height knob. See RECLINER COVER, KNOB AND HEIGHT KNOB REPLACEMENT .
  3. Remove the seat back assembly. See RECLINER COVER, KNOB AND HEIGHT KNOB REPLACEMENT .
  4. Remove the seat cushion. See SEAT CUSHION COVER REPLACEMENT .
  5. Remove the seat assembly (A).

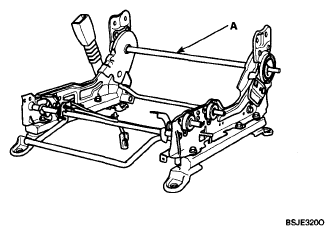

    Fig 1: Identifying Seat Assembly
    G04863448Courtesy of KIA MOTORS AMERICA, INC.
  6. Installation is the reverse of removal.
