Home >> Kia >> 2009 >> Optima LX, 2.4 8, Standard >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Engine And Transaxle Assembly - 2.4L >> Engine Mounting >> Components and Components Location >> Components

Components and Components Location: Components

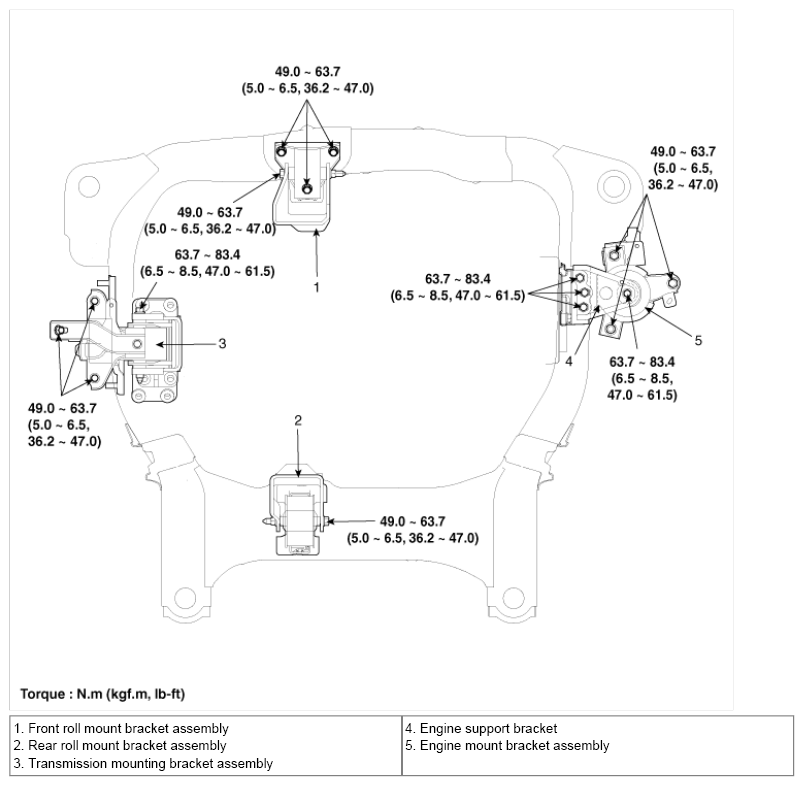

Fig 1: Engine Mounting With Torque Specifications

G06361575

Courtesy of KIA MOTORS AMERICA, INC.
