Home >> Kia >> 2009 >> Optima LX, 2.4 8, Standard >> Repair and Diagnosis >> Body & Frame >> Windows >> Interior >> Trunk Lid Trim >> Repair Procedures >> Replacement

Repair Procedures: Replacement

  1. Remove the trunk trim.
    NOTE:
    • Put on gloves to protect your hands.
    • When prying with a flat-tipped screwdriver, wrap it with protective tape to prevent damaged.
    • Take care not to bend or scratch the trim and panels.
  2. Installation is the reverse of removal.
    NOTE:
    • Replace any damaged clips.

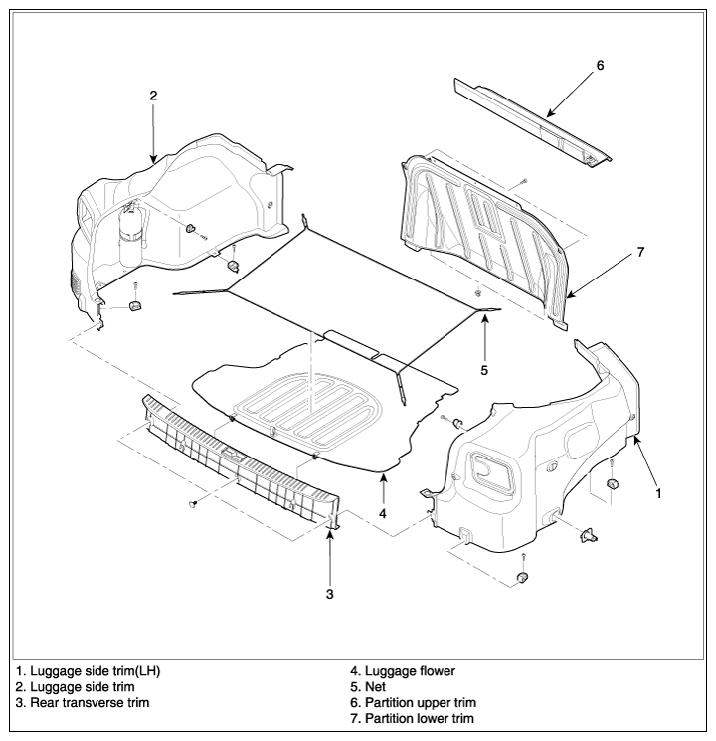

    Fig 1: Identifying Trunk Lid Trim Components
    G06367067Courtesy of KIA MOTORS AMERICA, INC.
