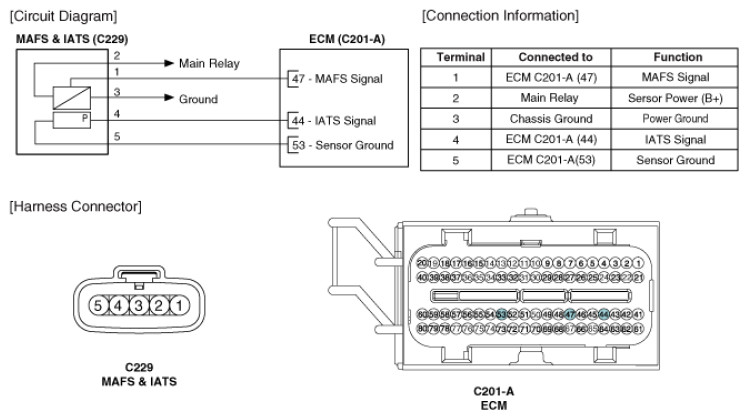

Home >> Kia >> 2009 >> Optima EX, 2.7 4 >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 2.7L >> Mass Air Flow Sensor (MAFS) >> Schematic Diagrams >> Circuit Diagram
