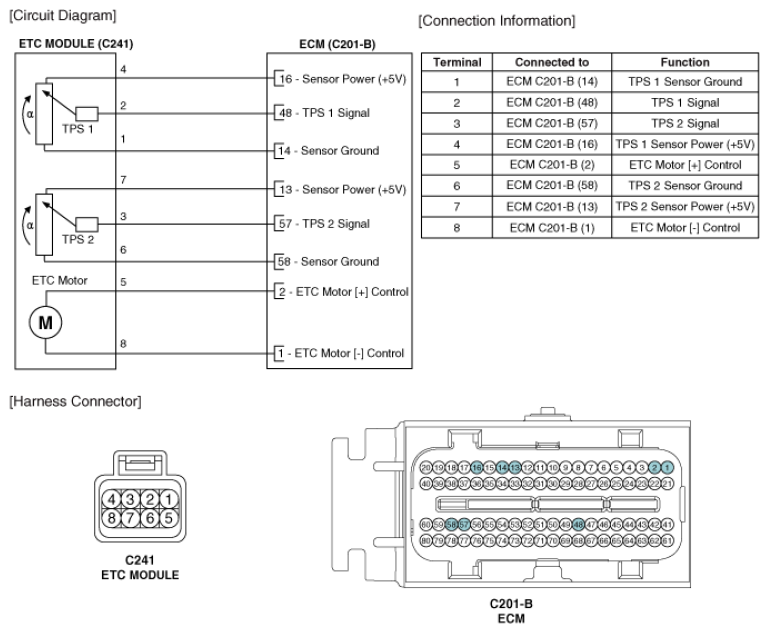

Home >> Kia >> 2009 >> Optima EX, 2.7 4 >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 2.7L >> Electronic Throttle Control (Etc) System >> Schematic Diagrams >> Circuit Diagram
