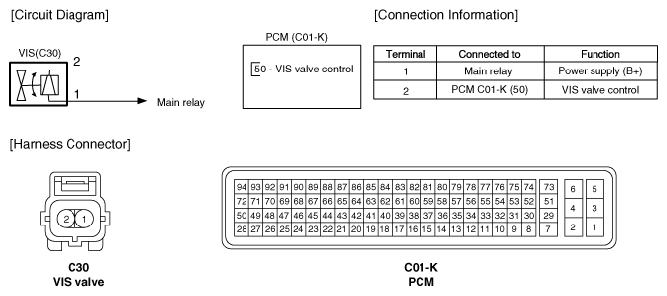

Home >> Kia >> 2009 >> Optima EX, 2.4 8 >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 2.4L >> Variable Intake Solenoid (VIS) Valve >> Schematic Diagram >> Circuit Diagram
