Camshaft Position Sensor (CMPS): Troubleshooting: Waveform

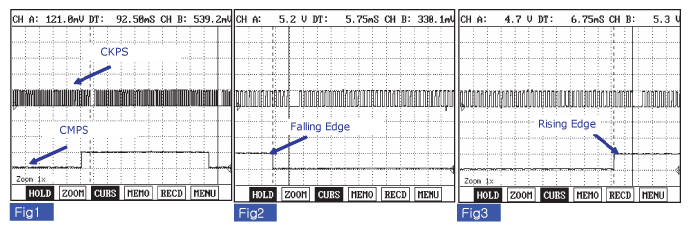

Fig 1: Waveform Of CKPS And CMPS

G06361940

Courtesy of KIA MOTORS AMERICA, INC.
