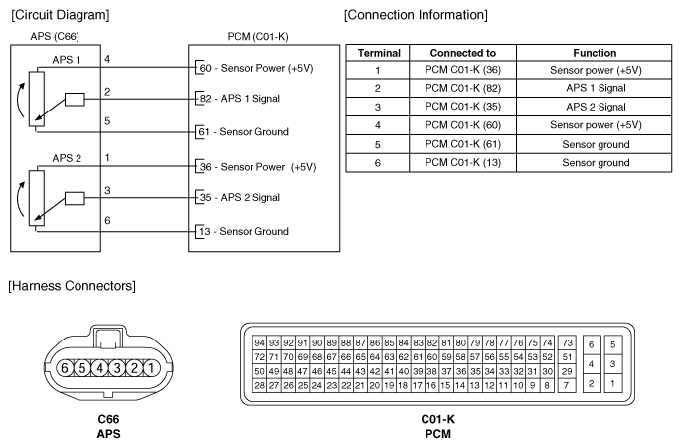

Home >> Kia >> 2009 >> Optima EX, 2.4 8 >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 2.4L >> Accelerator Position Sensor (APS) >> Schematic Diagram >> Circuit Diagram
