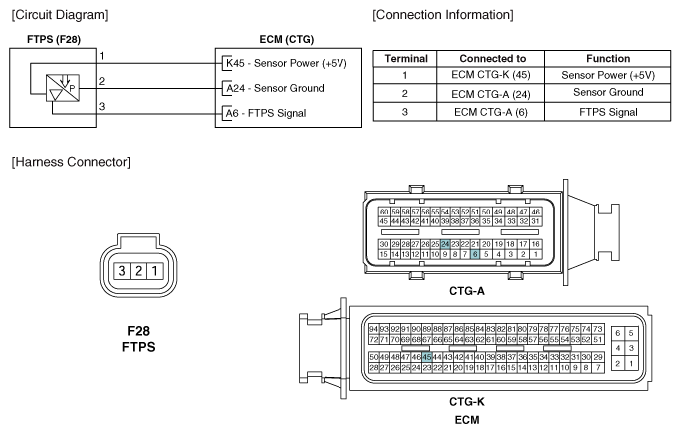

Home >> Kia >> 2009 >> Borrego Limited, RWD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 4.6L >> Fuel Tank Pressure Sensor (FTPS) >> Schematic Diagrams >> Circuit Diagram
