Monitor Scantool data

■ Check parking position switch status.

1. Connect scantool with diagnostic connector.
2. Check current data with scantool.
3. Check "Shift lever P position" parameter on current data.
4. Check that data is appropriately changeable according to the shift lever position in P or others.

   Specification :  P position : ON, Not in P position : OFF.

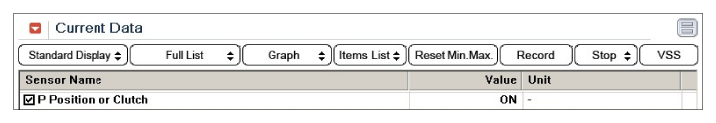

   Fig 1: Checking Current Data With Scantool

   Courtesy of KIA MOTORS AMERICA, INC.
5. Is the shift lever P position normal?

   YES

   • Check poor connection between harness connector and Parking Position switch or Smartkey Module : Thoroughly check the looseness, poor connection, bent, corrosion, contamination, deformation or damage of connector. Repair or replace as necessary and then, go to "VERIFICATION OF VEHICLE REPAIR " procedure.

   NO

   • Go to the appropriate Inspection Procedure.
