Circuit Diagram

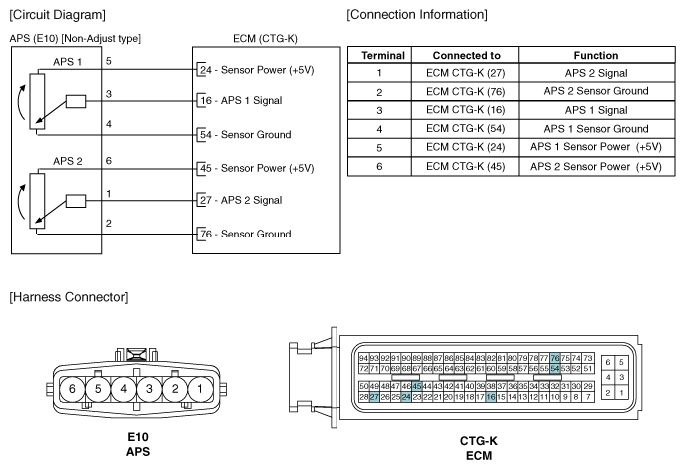

Fig 1: Accelerator Position Sensor (Non Adjust Type) - Circuit Diagram
G06485553Courtesy of KIA MOTORS AMERICA, INC.

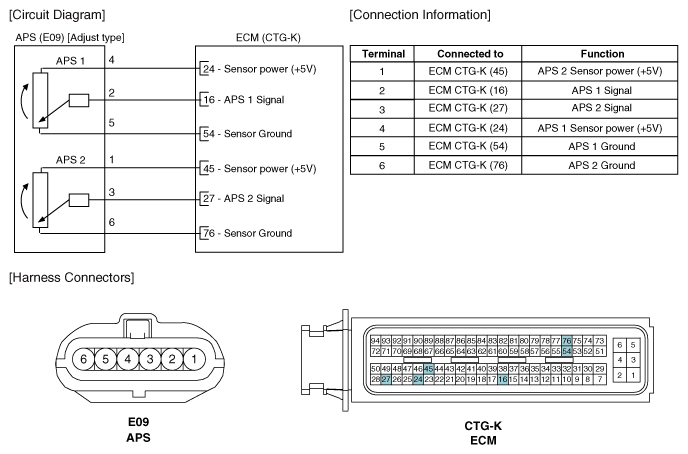

Fig 2: Accelerator Position Sensor (Adjust Type) - Circuit Diagram
G06485554Courtesy of KIA MOTORS AMERICA, INC.
