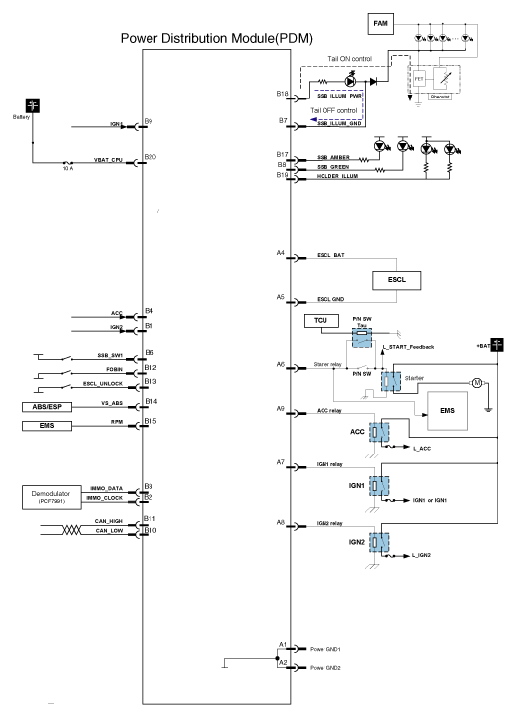

Home >> Kia >> 2009 >> Borrego Limited, 4WD >> Repair and Diagnosis >> Body & Frame >> Ignition Switch/Steering Lock >> Button Engine Start System >> PDM (Power Distribution Module) >> Schematic Diagrams >> System circuit diagram
