Monitor Scan Tool Data

  1. Connect scan tool to data link connector (DLC).
  2. Engine "ON".
  3. Monitor the "INPUT SPEED SENSOR" parameter on the scan tool.
  4. Driving at speed of over 19 Mile/h (30 Km/h).

    Specification: Increasing Gradually

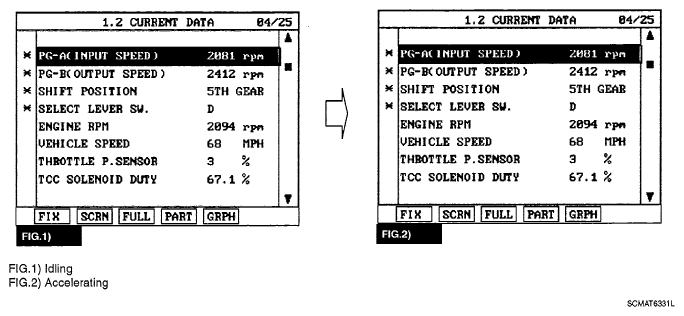

    Fig 1: Scan Tool Display - Current Data
    G05116672Courtesy of KIA MOTORS AMERICA, INC.
  5. Does "Input speed sensor" follow the reference data?

    YES

    • Fault is intermittent caused by poor contact in the sensor's and/or TCM (PCM)'s connector or was repaired and TCM (PCM) memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO
