Diagnostic Troubleshooting Flow: Notes

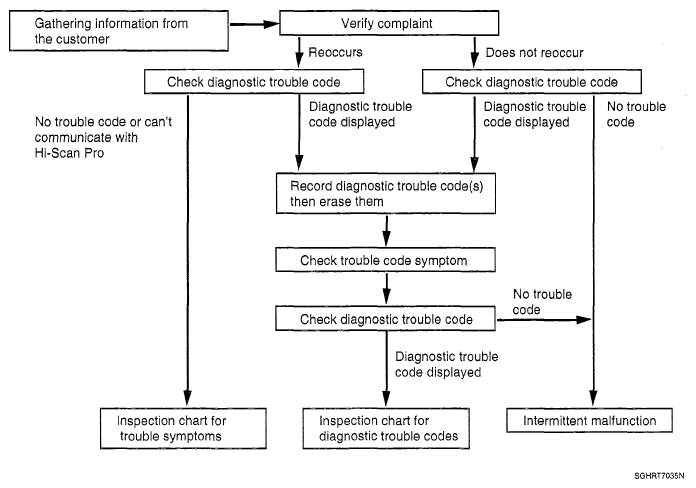

Fig 1: Diagnostic Troubleshooting Flow Chart

G05117210

Courtesy of KIA MOTORS AMERICA, INC.
