Side Impact Sensor (Sis): Components

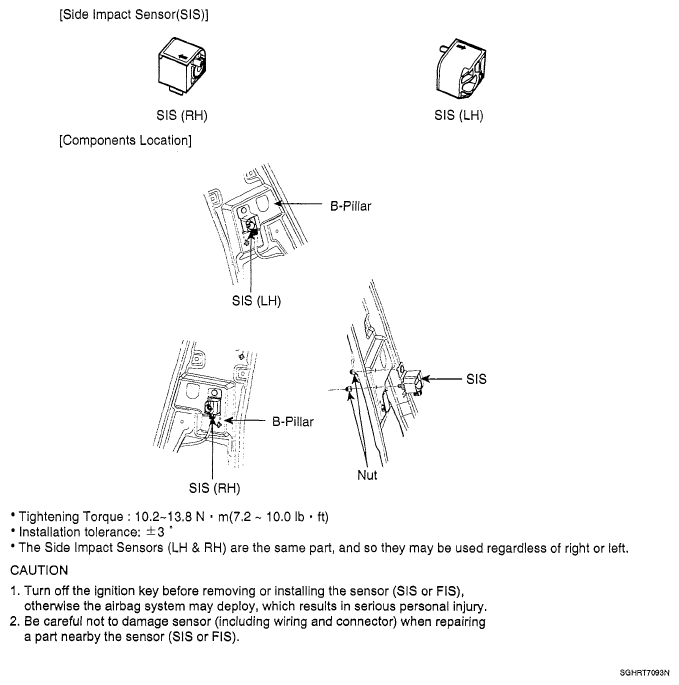

Fig 1: Identifying Side Impact Sensor Components

G05117206

Courtesy of KIA MOTORS AMERICA, INC.
