Front Impact Sensor (FIS): Components

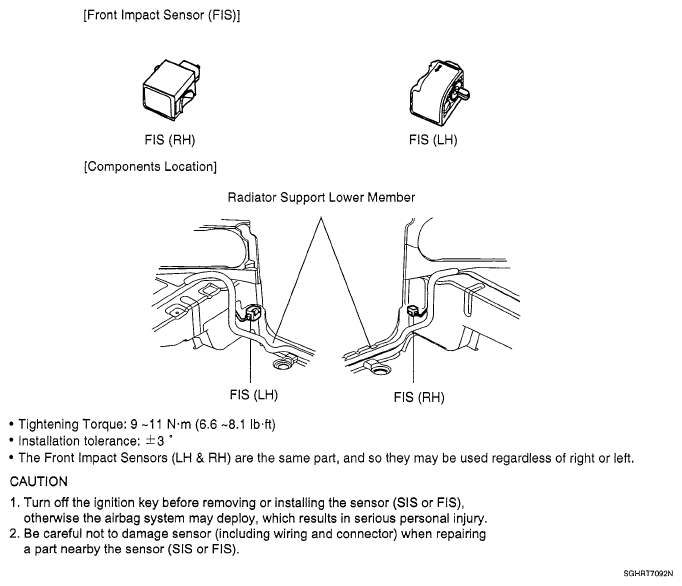

Fig 1: Identifying Front Impact Sensor Components

G05117205

Courtesy of KIA MOTORS AMERICA, INC.
