Circuit Diagram
Circuit Diagram

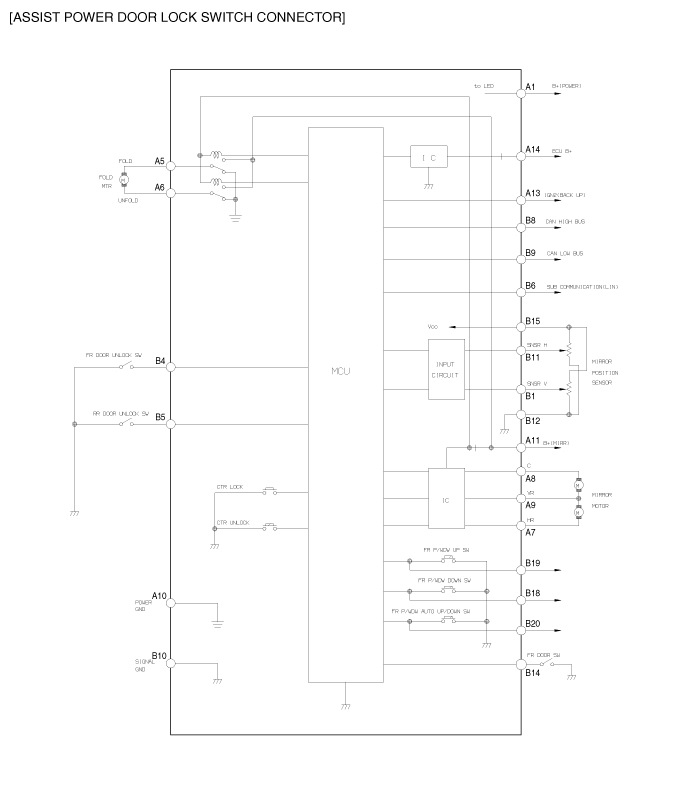

Fig 1: Assist Power Door Lock Switch Connector Wiring Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
