Checking Steering Wheel Free Play
- Start the engine with the steering wheel in the straight ahead position, apply a force of 5 N (1.1 lb) to the steering wheel in the peripheral direction.

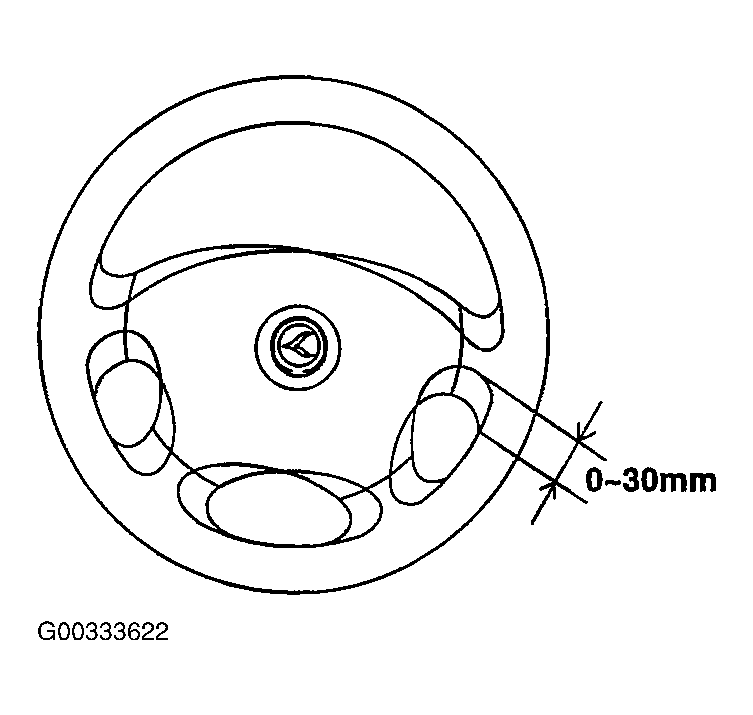

- Measure the play at the circumference of the steering wheel. Standard value for steering wheel free play: 0-30 mm (0-1.1 in).
- If the play exceeds the standard value, inspect the connection between the steering shaft and tie rod ends.
