CVVT (Continuous Variable Valve Timing) Assembly
- Inspect the CVVT (Continuous Variable Valve Timing) assembly.
- Check that the CVVT (Continuous Variable Valve Timing) assembly will not turn.

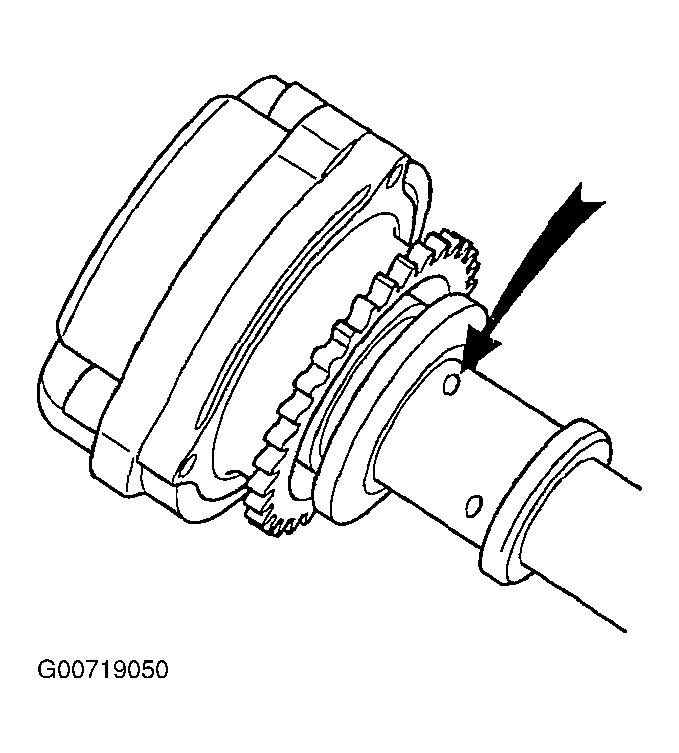

- Apply vinyl tape to all the parts except the one indicated by the arrow in the illustration.
- To release the CVVT lock pin, wrap some tape around the tip of an air pressure adapter and apply low air pressure (about 14 psi) to the exposed camshaft port.NOTE: Wrap a shop towel or rag around the CVVT because residual oil may leak out of the unit when applying air pressure.

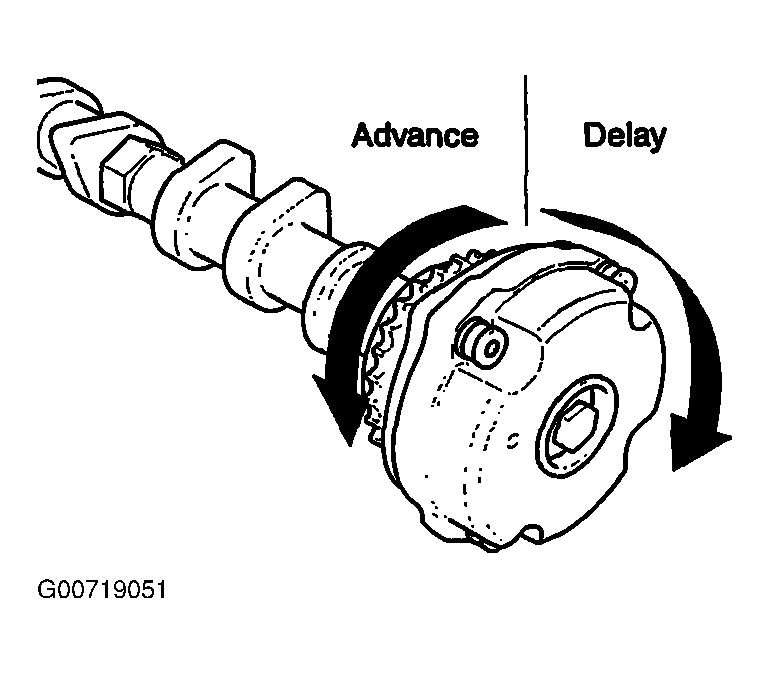

- With low air pressure applied, turn the CVVT to the ADVANCE direction as indicated in the illustration.
- With the low air pressure applied, the CVVT should turn to the ADVANCE side.
- If too much air leaks when applying the low air pressure, the CVVT lock pin may not release and the CVVT may not turn.
- Allow the CVVT assembly to move in the ADVANCE and DELAY directions to ensure there is no binding and that it moves freely.
Standard: Movable smoothly in the range about 20°
- Turn the CVVT by hand and make sure it locks in the maximum delay angle position.
