Cooling System: Inspection: Thermostat

  1. Immerse the thermostat in water and gradually heat the water.

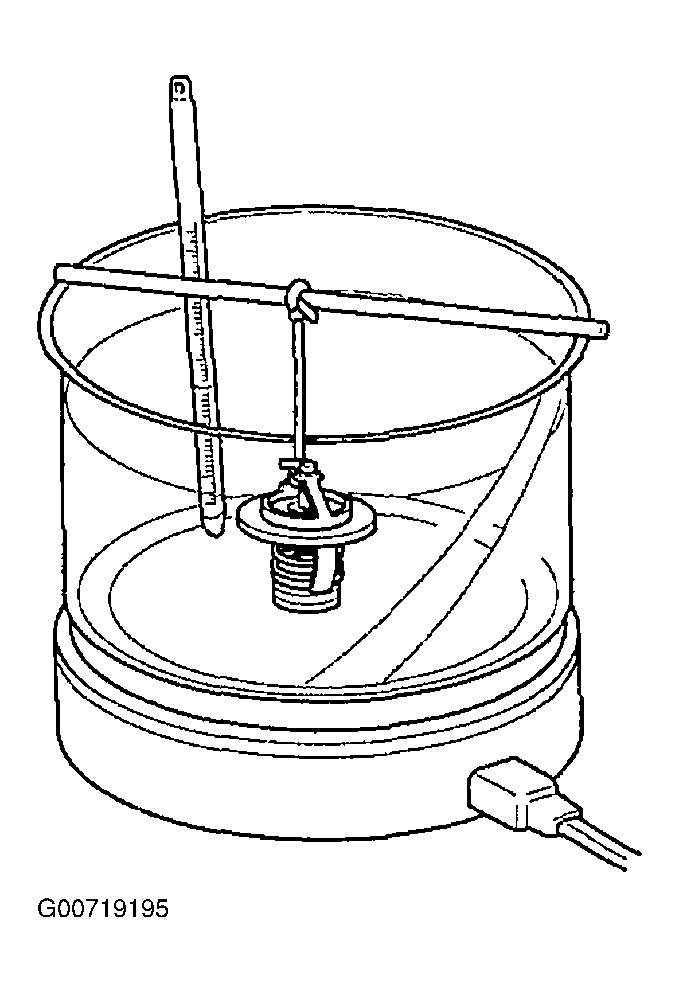

    Fig 1: Testing Thermostat
    G00719195Courtesy of KIA MOTORS AMERICA, INC.
  2. Check the valve opening temperature.

    Valve opening temperature: 82+/-1.5°C (179.6+/-2.7°F)

    Full opening temperature: 95°C (203°F)

    If the valve opening temperature is not as specified, replace the thermostat.

  3. Check the valve lift.

    Valve lift: 8 mm (0.3 in) or more at 95°C (203°F)

    If the valve lift is not as specified, replace the thermostat.
